Shark® Salt Water Filtration (Desalination)
A Crystal Quest® SHARK® Reverse Osmosis (RO) system is a great solution if you are faced with multiple water issues or if you are trying to achieve the highest level of desalination.
The Shark® seawater reverse osmosis system will separate dissolved salts and other minerals from your water. Feedwater sources may include brackish, seawater, wells, surface (rivers and streams), wastewater, and industrial feed and process waters. Seawater requires pre-treatment to remove various contaminants such as organics, algae, and fine particles.
Membrane Technology

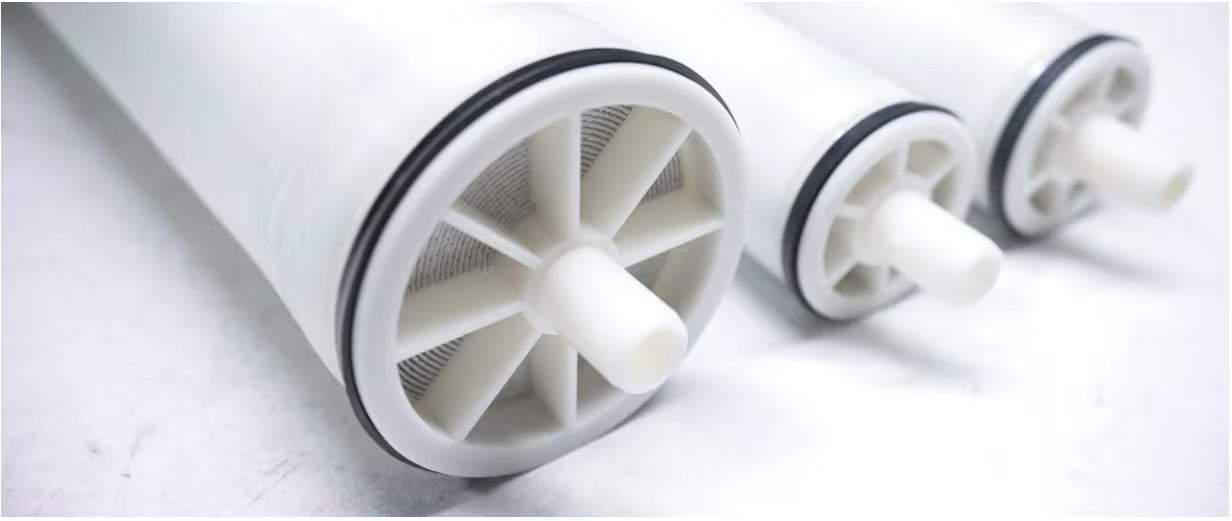

Crystal Quest Shark® Desal Reverse Osmosis membranes will separate dissolved salts and other minerals from your water. Feed-water sources may include brackish, seawater, wells, surface (rivers and streams), wastewater, and industrial feed and process waters. Seawater requires pre-treatment to remove various contaminants such as organics, algae, and fine particles.
Standard Features
- LCD Backlit Display (Controller)
- Pre-Treatment Lockout (Controller)
- Tank Level Input (Controller)
- Low-Pressure Monitoring Alarm (Controller)
- Dual TDS Monitoring (Controller)
- Feed Flush (Controller)
- Crystal Quest® Permeate and Concentrate Flow Meters
- Pre-Filter 0-100 psi Panel Mounted Glycerin Filled Gauges
- Crystal Quest Pump Discharge and Concentrate 0-600 psi Panel Mounted Glycerin Filled Gauges
- High Rejection Sea Water Membrane Elements
- Stainless Steel Membrane Housings
- 5-Micron Sediment Pre-Filter
- Single O-Ring Cartridge Housing
Accessories
- 316 Stainless Steel Needle Valve
- SS Feed Low Pressure Switch
- SS Pump High Pressure Switch
- Pressure Relief Valve
- High Pressure Hose
- Pulsation Dampener
- 316L High Pressure Pump
- Motor with Thermal Motor Protection
- High Pressure 316 Stainless Steel Tubing and Fittings
- High Pressure Hose with Reusable SS Fittings
- White Powder Coated Aluminum Frame
- Additional Options and Upgrades are Available
Product Specifications
| Model | Capacity | Membrane Elements | Line Sizes (NPT, inches) | Dimensions (in/cm) | Approx. Weight (lb/kg) | ||||||
| GPM | GPD | Qty. | Size (Dia. x L) | Inlet | Permeate | Concentrate | Length | Depth | Height | ||
| CQE-SW-02975 | 0.5 | 600 | 1 | 2.5 x 40 | 1/2 | 3/8 | 3/8 | 48/122 | 24/61 | 18.5/47 | 145/66 |
| CQE-SW-02976 | 1 | 1,200 | 2 | 2.5 x 40 | 1/2 | 3/8 | 3/8 | 48/122 | 24/61 | 18.5/47 | 155/70 |
| CQE-SW-02977 | 1.25 | 1,800 | 3 | 2.5 x 40 | 1/2 | 3/8 | 3/8 | 48/122 | 24/61 | 18.5/47 | 165/75 |
| CQE-SW-02978 | 1.5 | 2,400 | 4 | 2.5 x 40 | 1/2 | 3/8 | 3/8 | 48/122 | 24/61 | 18.5/47 | 175/80 |
| CQE-SW-02988 | 2 | 3,000 | 4 | 4 x 40 | 1 | 3/4 | 3/4 | 60/152 | 26/66 | 48/122 | 300/136 |
| CQE-SW-02989 | 3.5 | 5,000 | 5 | 4 x 40 | 1 | 1 | 1 | 60/152 | 26/66 | 48/122 | 340/154 |
| CQE-SW-02990 | 5 | 7,000 | 6 | 4 x 40 | 1 | 1 | 1 | 60/152 | 26/66 | 48/122 | 600/272 |
