Our industrial-grade reverse osmosis system combines precision engineering with intelligent automation to deliver exceptional water quality across diverse applications. Purpose-built for professionals who demand reliability, efficiency, and consistent performance in water treatment.
The integrated C-150 microprocessor controller provides sophisticated system management:
Enhance system performance with our popular upgrade pathways:
Gallons Per Day (GPD) @ 77° F | ||||||
| GPM | 10000 | 15000 | 20000 | 30000 | 40000 | 50000 |
| Model No | CQE-CO-02031 | CQE-CO-02032 | CQE-CO-02033 | CQE-CO-02034 | CQE-CO-02035 | CQE-CO-02036 |
| Dimensions | 49" x 33" x 54" | 63" x 39" x 54" | 63" x 39" x 54" | 41" x 143" x 80" | 41" x 143" x 80" | 41" x 143" x 80" |
| Weight (lbs) | 385 | 400 | 415 | N/A | N/A | N/A |
| Concentrate Re-Circulate | Optional | Optional | Optional | Optional | Optional | Optional |
| Auto Flush | Optional | Optional | Optional | Optional | Included | Optional |
| Membrane Size | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 | 4040 TFC HF1 |
| # of Membranes | 6 | 8 | 10 | 14 | 16 | 20 |
| Motor HP | 1.5 | 1.5 | 3 | 3 | 5 | 5 |
| Voltage* (volts AC) | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 | 110/220 |
| Hertz (cycles) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Feed Connection | 1" | 1" | 1" | 2" | 2" | 2" |
| Product Connection | 1" | 1" | 1" | 1.5" | 1.5" | 1.5" |
| Waste Connection | 1" | 1" | 1" | 1" | 1" | 1.5" |
| Minimum Feed Pressure | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi | 45 psi |
| Minimum NaCl - % Rejection | 96% | 96% | 96% | 96% | 96% | 96% |
| Minimum Feed (GPM) | 14 | 21 | 28 | 42 | 56 | 70 |
| Maximum Hardness (GPG) | 15 | 15 | 15 | 15 | 15 | 15 |
| Maximum TDS | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm | 2000 ppm |
| Operating Pressure | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi | 150 psi |
| Maximum NaCl - % Rejection | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% | 98.5% |
| pH Range | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 | 3-11 |
The Crystal Quest C-150 Microprocessor Controller has features and options to allow the OEM flexibility to meet many different specifications. The controller has five relay outputs, four dry contact inputs, and two TDS/conductivity inputs. A 2 line by 20 characters LED display provides the operating status of the RO unit along with the water quality, operating hours, and water temperature. This controller is standard for high-flow commercial reverse osmosis systems but has an additional upgrade option for ethernet integration.
The Crystal Quest C-200 Microprocessor Controller is a versatile controller for reverse osmosis systems that offer advanced features and options which make it an exceptional choice for large commercial and industrial reverse osmosis systems.
The Crystal Quest C-200 Controller has the flexibility to meet many specifications with six (6) switch inputs, five (5) analog inputs, six (6) relay outputs, and two (2) TDS/conductivity inputs. The 4 line by 20 character LCD display provides sensor readings, hours of operation, temperature, alarms, and operating status of the RO system.
Our Stainless Steel Membrane Pressure Vessels enhance system appearance and allow you to take full advantage of the membrane capability. These vessels are considered safer and more reliable than PVC pressure vessels. Designed for continuous long-term use as a pressure vessel for reverse osmosis, nanofiltration, and ultra-filtration elements which are used on typical commercial reverse osmosis water treatment systems at pressures up to 300 PSI.

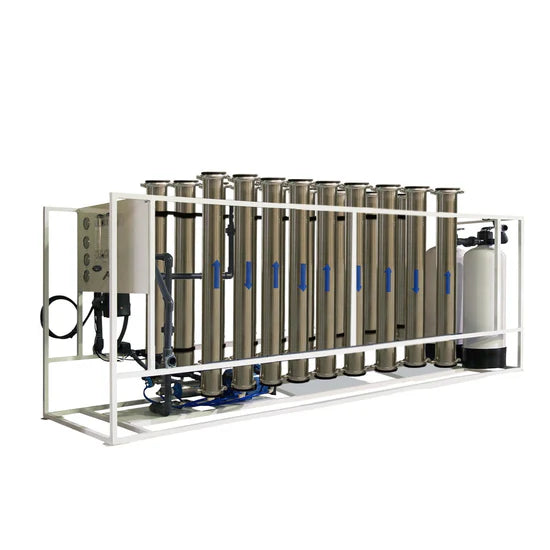

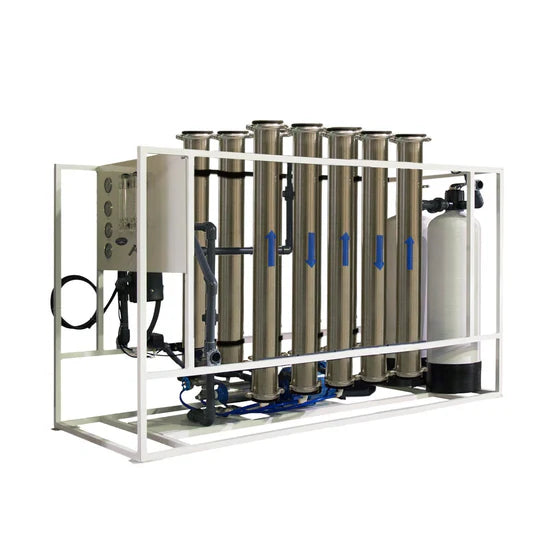

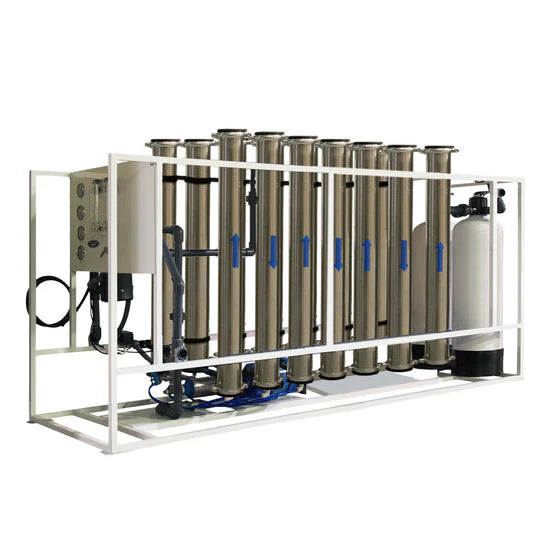

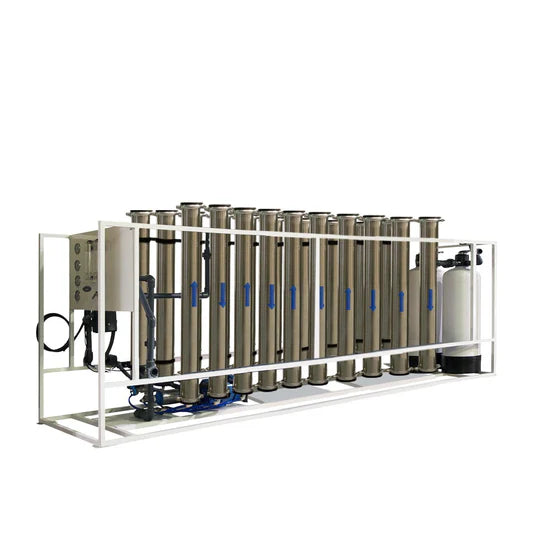

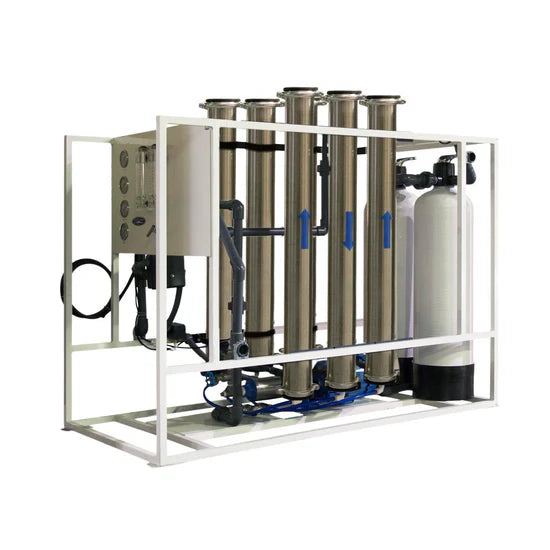

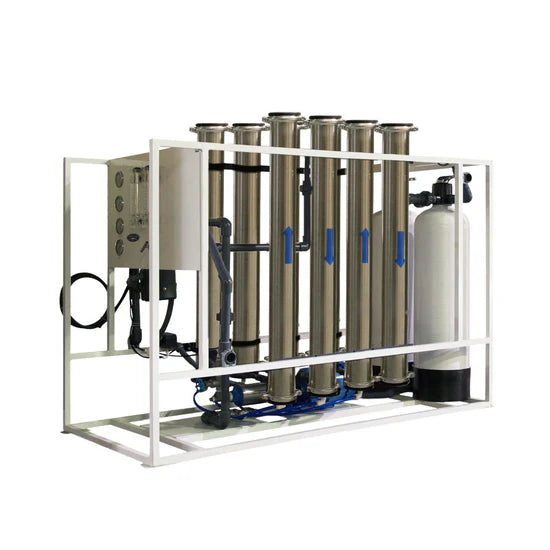

This High Flow Reverses Osmosis system is designed for commercial and industrial applications and is manufactured as a 10,000 GPD Reverse Osmosis, 15,000 GPD Reverse Osmosis, 20,000 GPD Reverse Osmosis, 30,000 GPD Reverse Osmosis, 40,000 GPD Reverse Osmosis, 50,000 GPD Reverse Osmosis,
