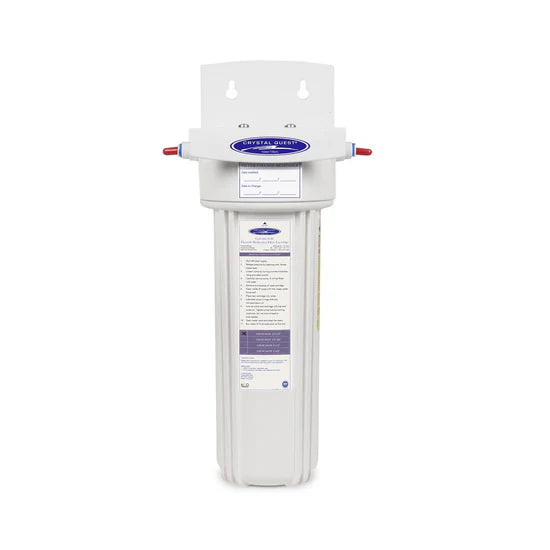

Crystal Quest® Fluoride Removal + SMART Refrigerator / In-Line Water Filter System
Advanced 7-Stage Filtration for Pure, Safe, and Great-Tasting Water
The Crystal Quest® Fluoride Removal + SMART Refrigerator / In-Line Water Filter System delivers exceptional water purification by removing fluoride, chlorine, heavy metals, and other contaminants while enhancing water quality and taste. Designed for use with refrigerators, ice-makers, water coolers, coffee machines, and water dispensers, this system provides a reliable and efficient solution for cleaner, healthier drinking water.
7-Stage Filtration for Maximum Purity & Protection
✦ Stages 1 & 7: Pre & Post One-Micron Filtration
- Removes suspended particles, including silt, sediment, sand, rust, dirt, and cysts (Giardia, Cryptosporidium).
- Enhances clarity and safety by eliminating harmful undissolved matter.
✦ Stage 2: Fluoride Removal Cartridge
- Utilizes Fluoride Charcoal Granulated Activated Carbon (GAC) to effectively reduce fluoride, lead, and arsenic.
- Works through adsorption and chemical reaction instead of traditional ion exchange, ensuring consistent and long-lasting filtration.
- Designed for high-capacity filtration with fluoride removal up to 11,000 ppm F+, keeping effluent levels below 0.2 ppm.
- Aluminum Oxide option available upon request for specific filtration needs.
✦ Stage 3 & 5: Eagle Redox Alloy® (ERA-6500 & ERA-9500) Filtration
-
Utilizes an advanced copper-zinc alloy that enhances water purification through an electrochemical oxidation-reduction process.
-
Eliminates chlorine (99.9%) instantly, reducing chemical exposure and improving taste.
-
Removes heavy metals like lead, copper, and aluminum while inhibiting bacterial growth.
✦ Stage 4: Ion Exchange Resin & Alkaline Enhancement
-
Reduces heavy metals such as lead, copper, and aluminum while also minimizing water hardness.
-
Incorporates Ceramic & Tourmaline Balls, which naturally alkalize water and improve hydration benefits.
✦ Stage 6: Granulated Activated Carbon (GAC) Filtration
- Removes up to 99.9% of chlorine, improving taste and odor.
- Adsorbs a wide range of harmful contaminants, including:
- THMs, benzene, pesticides, herbicides, insecticides
- Volatile organic compounds (VOCs), PCBs, MTBE
- Other chemical pollutants linked to health risks
- Blended Coconut-Shell & Catalytic GAC effectively removes both chlorine and chloramine byproducts.
Specifications
Operating Specs
- Min Operating Pressure: 20 psi (pounds per sq. in.)
- Max Operating Pressure: 60 psi (pounds per sq. in.)
- Min Operating Temperature: 40 degrees F
- Max Operating Temperature: 90 degrees F
- Max Flow Rate: 0.3-0.5 gallons per minute
Dimensions
Single : 6.5 x 6.5 x 14.25
Weight: 5 lbs
