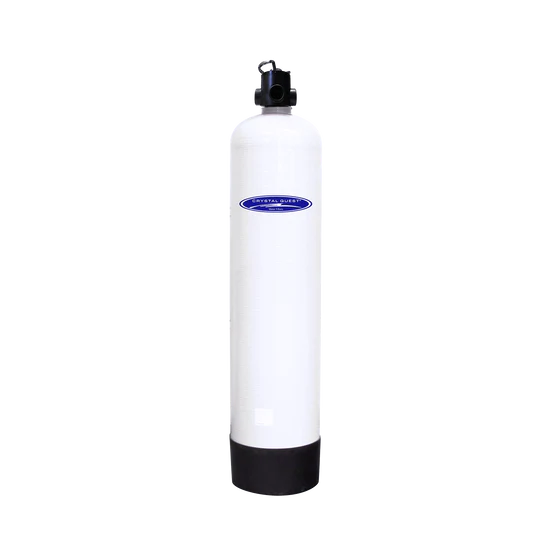

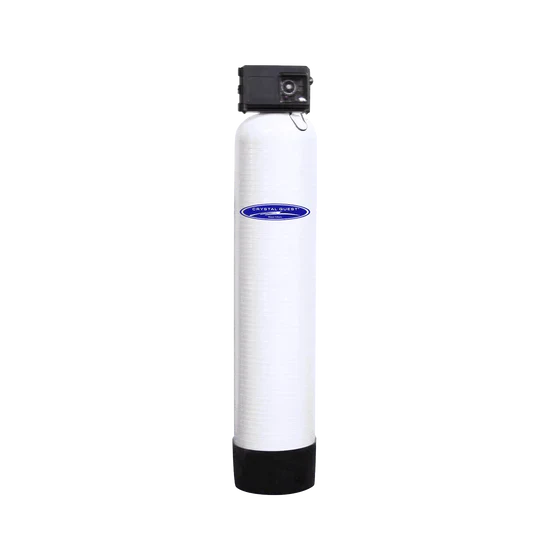

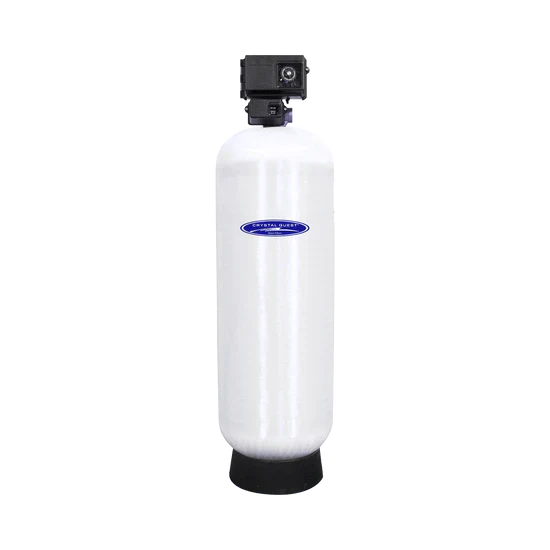

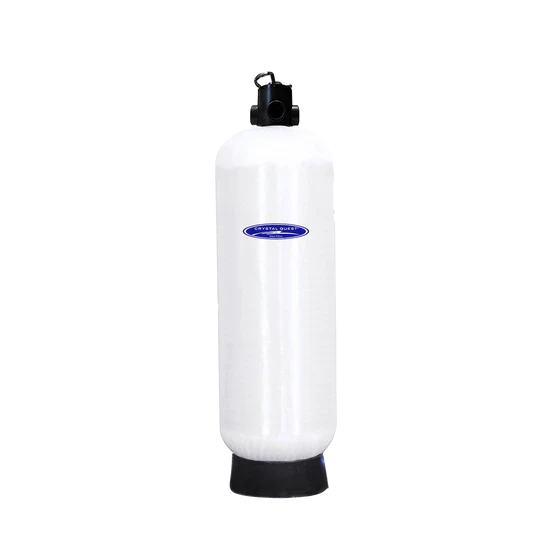

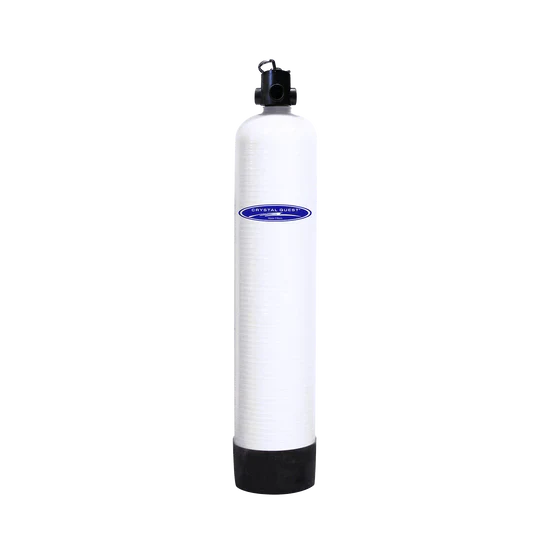

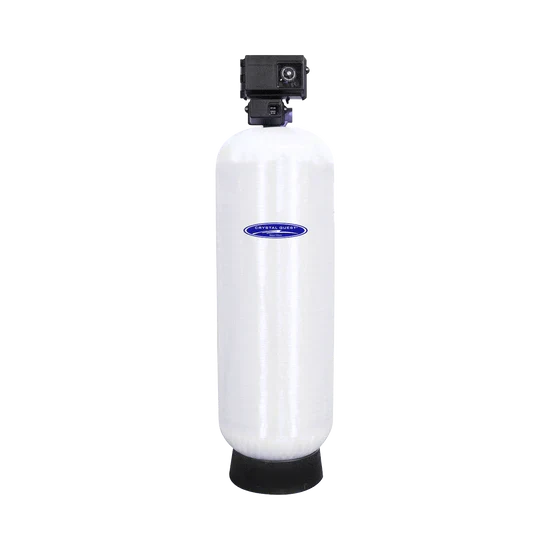

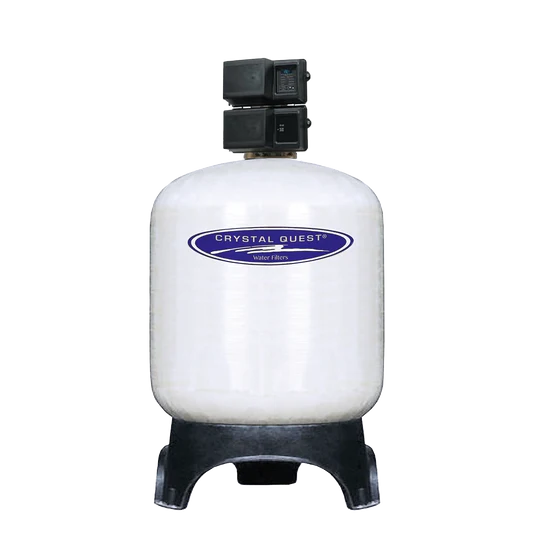

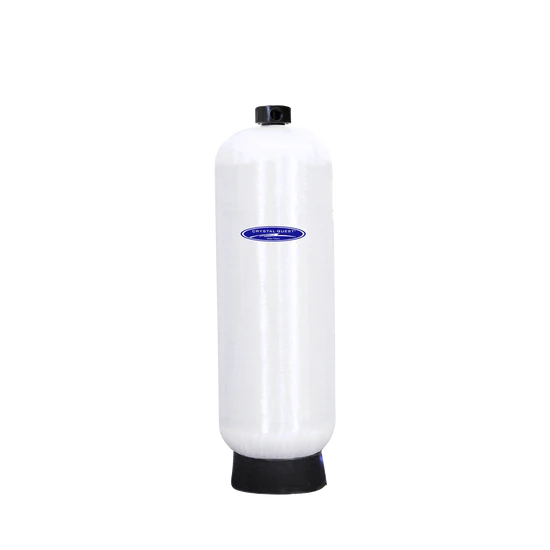

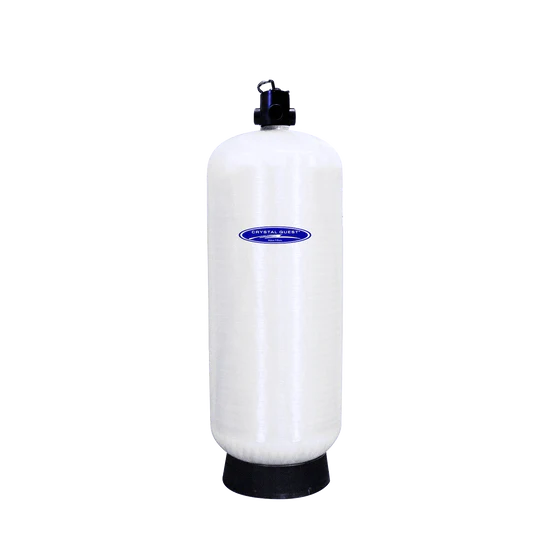

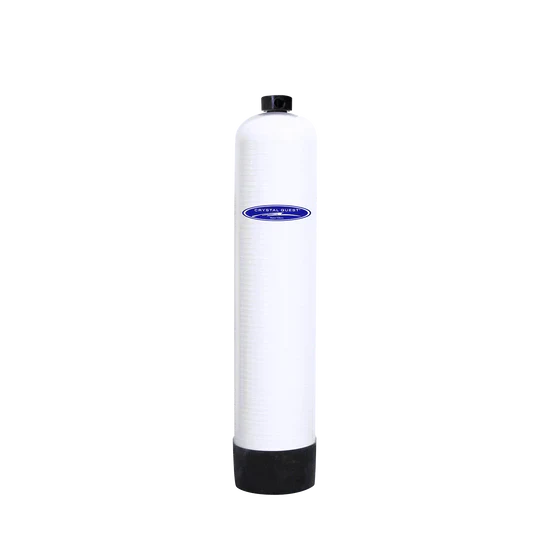

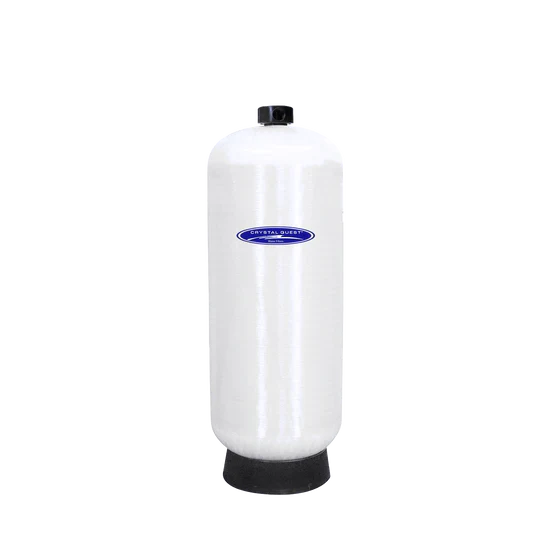

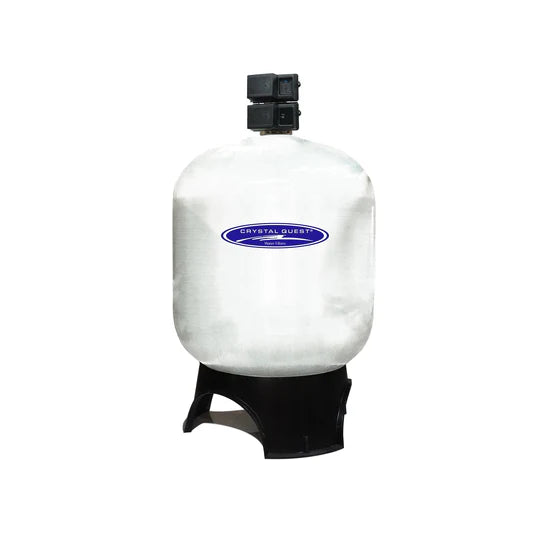

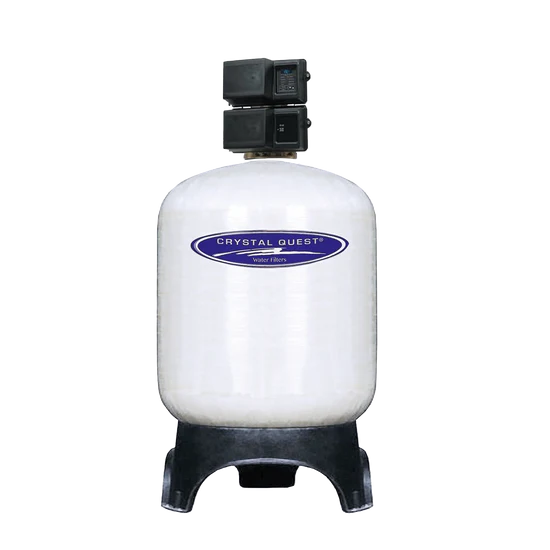

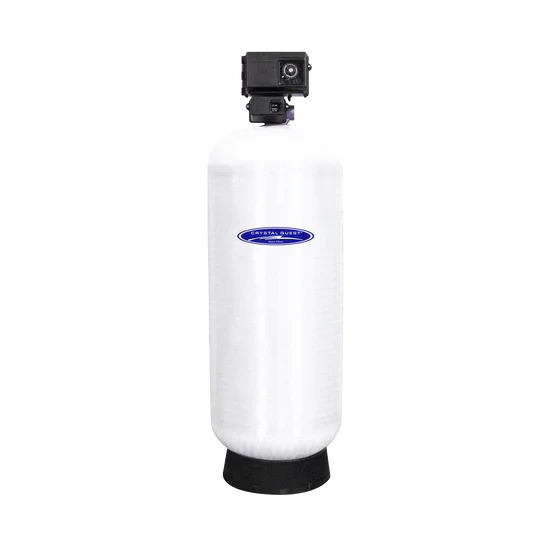

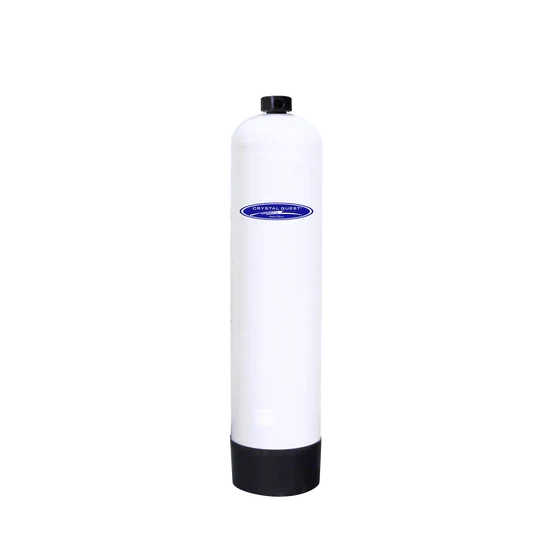

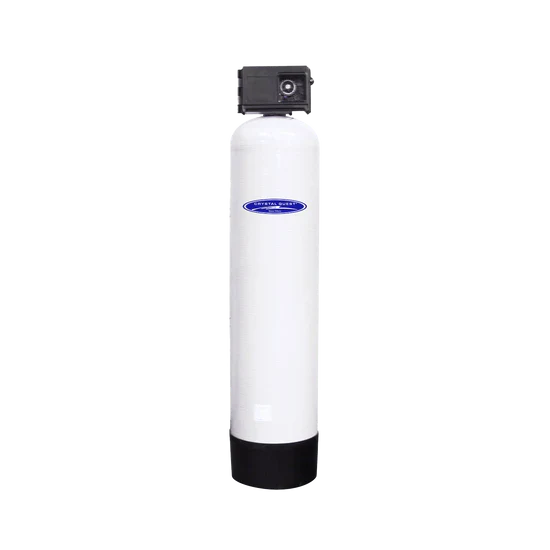

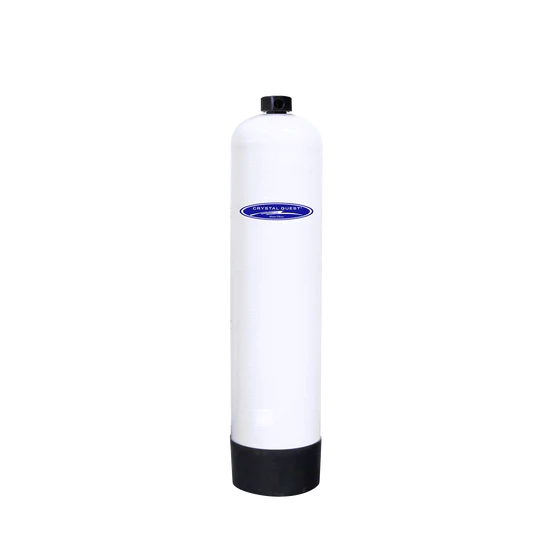

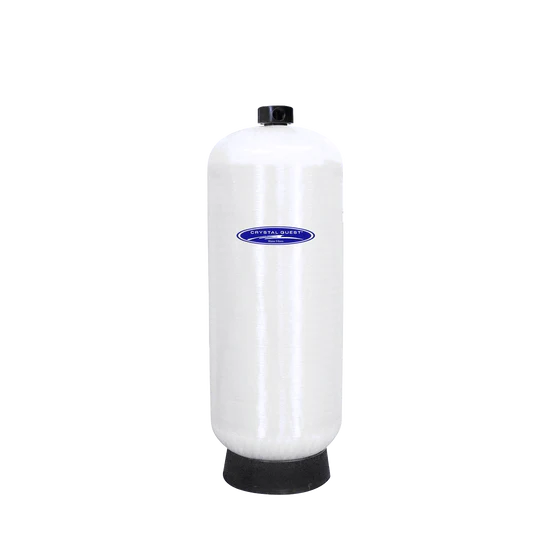

The Crystal Quest Eagle Commercial Fluoride Filtration System is an advanced water treatment solution engineered specifically for commercial and industrial applications. At its core, this system combines innovative dual-media technology - our proprietary Eagle Fluoride Resin featuring synthetic aluminum oxide adsorbent and Eagle Activated Charcoal with bone char carbon - to deliver exceptional fluoride removal performance.
Professional Support: Our technical team provides comprehensive support for system specification, installation, and maintenance. Contact us for:
The Crystal Quest Eagle Commercial Fluoride Filtration System represents the ideal solution for organizations seeking reliable, efficient, and cost-effective fluoride removal. Its combination of advanced technology, robust construction, and flexible configuration options ensures optimal performance across a wide range of commercial and industrial
applications.
Crystal Quest Eagle Fluoride Resin contains synthetic aluminum oxide adsorbent media. Specifically designed to have a high affinity for Fluoride, Lead, and Arsenic. It removes metals through a mixture of adsorption and chemical reaction with the media; therefore, the elimination is not reliant on ion exchange. It has a uniform particle size, is physically stable and can be used over a wide pH range.
Eagle Activated Charcoal Fluoride Removal Media - Bone char carbon is a unique carbonaceous adsorbent manufactured from the treatment and carbonization of selected grades of animal bone and is used for liquid phase filtration to remove organic and inorganic species such as color bodies and many heavy metals. Bone char is different from activated carbon in that it contains both carbon surface area and hydroxyapatite lattice surface area.
| Model No. | CQE-CO-02075 | CQE-CO-02076 | CQE-CO-02077 | CQE-CO-02078 | CQE-CO-02079 | CQE-CO-02080 | CQE-CO-02081 | CQE-CO-02082 | CQE-CO-02103 |
| Service Flow Rate (GPM) | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 305-320 |
| Electronic Control Valve | 2510 | 2850 | 2850 | 2900 | 2900 | 3900 | 3900 | 3900 | 4900 |
| Pipe Size | 1" | 1.5" | 1.5" | 2" | 2" | 3" | 3" | 3" | 4" |
| PSI Range | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 | 35-60 |
| Fluoride Removal Media | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 60 ft³ |
| Quartz (lbs.) | 30 | 80 | 100 | 200 | 400 | 500 | 700 | 900 | 1200 |
| Mineral Tank Size (in.) | 14x65 | 16x65 | 21x62 | 24x72 | 30x72 | 36x72 | 42x72 | 48x72 | 54x78 |
| Brine Tank Size (in.) | 24x41 | 24x41 | 24x5 | 30x50 | 39x48 | 39x60 | 42x60 | 50x60 | 68x83 |
| Service Flow (gpm) | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 310 |
| Peak Flow (gpm) | 22 | 41 | 60 | 95 | 140 | 250 | 270 | 280 | 600 |
| Backwash Flow (gpm) | 5 | 7 | 12 | 15 | 25 | 35 | 50 | 65 | 80 |
| Space Required (in.) (WxDxH) | 15x16x75 | 17x18x75 | 23x24x84 | 24x24x95 | 32x32x95 | 40x48x95 | 46x54x95 | 52x60x95 | 63x83x95 |
Specification | CQE-CO-02075 | CQE-CO-02076 | CQE-CO-02077 | CQE-CO-02078 | CQE-CO-02079 | CQE-CO-02080 | CQE-CO-02081 | CQE-CO-02082 | CQE-CO-02103 |
GPM | 15 | 20 | 35 | 60 | 75 | 185 | 200 | 205 | 305-320 |
Fluoride Removal Media | 3 ft³ | 4 ft³ | 7 ft³ | 10 ft³ | 15 ft³ | 20 ft³ | 30 ft³ | 40 ft³ | 50 ft³ |
Quartz (lbs.) | 30 | 80 | 100 | 200 | 400 | 500 | 700 | 900 | 1200 |
