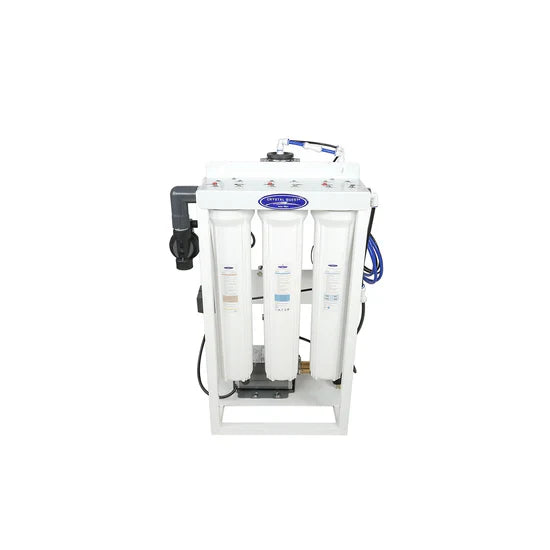

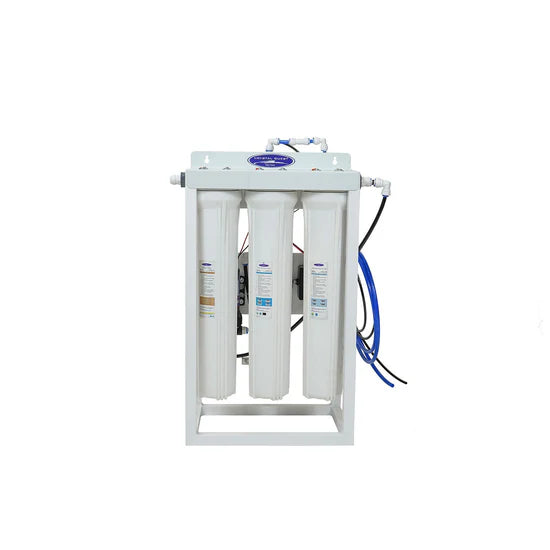

Low-Flow Reverse Osmosis System

Name: Low-Flow Reverse Osmosis System
Brand: Crystal Quest
SKU: CQE-CO-02022R
Price: 1599.65 USD
Availability: InStock

by Crystal Quest

SKU: CQE-CO-02022R

🛠️ Easy to Install & Maintain

from $1,599.65

In Stock and Ready to Ship!

Authorized Seller

FREE & FAST Shipping

Product Warranty

We Will Beat Any Advertised Price- Call Us

💰Financing Available

Flow Rate

200 GPD

300 GPD

Quantity

Gallons Per Day (GPD) @ 77° F

	200	300
Model	CQE-CO-02022	CQE-CO-02023
Dimensions	7" x 22" x 31"	7" x 28" x 33"
Weight (lbs)	50	70
Concentrate Re-Circulate	Optional	Optional
Auto Flush	Optional	Optional
Membrane Size	2514 TFC HF1	2521 TFC HF1
# of Membranes	1	1
Motor HP	N/A	N/A
Voltage (volts AC)	110/220	110/220
Hertz (cycles)	50/60	50/60
Feed Connection	3/8”	3/8”
Product Connection	3/8”	3/8”
Waste Connection	1/4"	1/4"
Minimum Feed Pressure	45 psi	45 psi
Minimum NaCl - % Rejection	96%	96%
Minimum Feed (GPM)	1	1
Maximum Hardness (GPG)	15	15
Maximum TDS	1000 ppm	1000 ppm
Operating Pressure	50 psi	150 psi
Maximum NaCl - % Rejection	98.5%	98.5%
Maximum Feed (GPM)	3	3
pH Range	3-11	3-11

Key Features

Comprehensive Filtration: Utilizes a multi-stage filtration process for superior water quality throughout your home.
Resin Capacity: Options for 1.5 cubic feet (Filters 1,000,000 Gallons) or 2.0 cubic feet (Filters 1,500,000 Gallons).
Contaminant Removal: Efficiently removes chlorine, chloramines, VOC's, THM's, pesticides, sulfur, heavy metals, hydrogen sulfide, and iron oxides.
Eco-Friendly: Aligns with sustainable practices and is BPA-free.
Quality Certified: ISO-certified.
Optional Add-Ons: Offers optional UV sterilizer, leak detector, and oxidation systems for enhanced performance.
Easy Installation: Designed for quick and hassle-free setup.

Dimensions (L x W x H) - Commercial RO’s

GPD	Dimensions (L x W x H)
200 GPD	17” x 23” x 35”
300 GPD	17” x 23” x 35”
500 GPD	24” x 25” x 55”
750 GPD	24” x 25” x 55”
1,000 GPD	24” x 25” x 55”
1,500 GPD	24” x 25” x 55”
1,800 GPD	24” x 25” x 55”
2,500 GPD	24” x 25” x 55”
4,000 GPD	31” x 38” x 56”
5,000 GPD	31” x 38” x 56”
7,000 GPD	31” x 38” x 56”
10,000 GPD	31” x 58” x 64”
GPD	Dimensions (L x W x H)
200 GPD	17” x 23” x 35”
300 GPD	17” x 23” x 35”

Installation Manuals & Schematics

200-300 GPD Reverse Osmosis Manual

200 GPD Reverse Osmosis Schematic

Replacement Membranes & Cartridges

SYSTEM	CARTRIDGE	SKU
200 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8” x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 14” Freshwater Reverse Osmosis Membrane	CQE-RC-04111

300 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8 x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8 x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 21” Freshwater Reverse Osmosis Membrane	CQE-RC-04084
SYSTEM	CARTRIDGE	SKU
200 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8” x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 14” Freshwater Reverse Osmosis Membrane	CQE-RC-04111

300 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8 x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8 x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 21” Freshwater Reverse Osmosis Membrane	CQE-RC-04084
SYSTEM	CARTRIDGE	SKU
200 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8” x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 14” Freshwater Reverse Osmosis Membrane	CQE-RC-04111

300 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8 x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8 x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 21” Freshwater Reverse Osmosis Membrane	CQE-RC-04084
SYSTEM	CARTRIDGE	SKU
200 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8” x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8” x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 14” Freshwater Reverse Osmosis Membrane	CQE-RC-04111

300 GPD	2-7/8” x 20” Pleated Cellulose Sediment Cartridge	CQE-RC-04015
	2-7/8 x 20” SMART Filter Cartridge	CQE-RC-04016
	2-7/8 x 20” Coconut Based 5-Micron Carbon Block Filter Cartridge	CQE-RC-04014
	2.5” x 21” Freshwater Reverse Osmosis Membrane	CQE-RC-04084

Health Benefits

Clean and Healthy Drinking Water: Provides purified water free of a wide range of contaminants, ideal for consumption by employees or customers.
Lower Water Consumption: Compared to traditional RO systems, it promotes water conservation.
Efficient Filtration: Delivers clean water without sacrificing filtration performance.
Durable Design: Built to withstand the demands of commercial use.
Scalability: Some configurations might allow for adding additional membrane stages in the future to increase water production if your needs grow.
